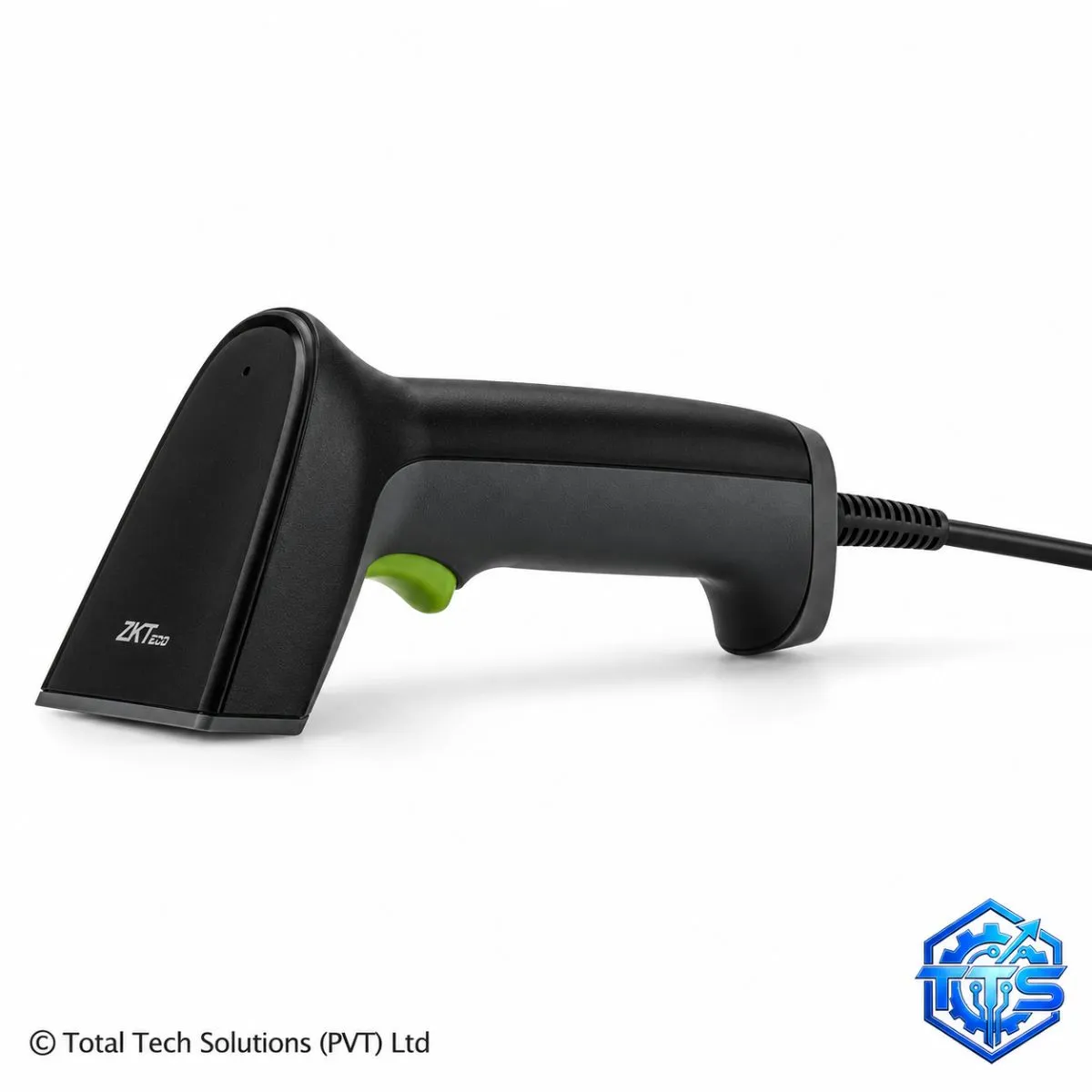

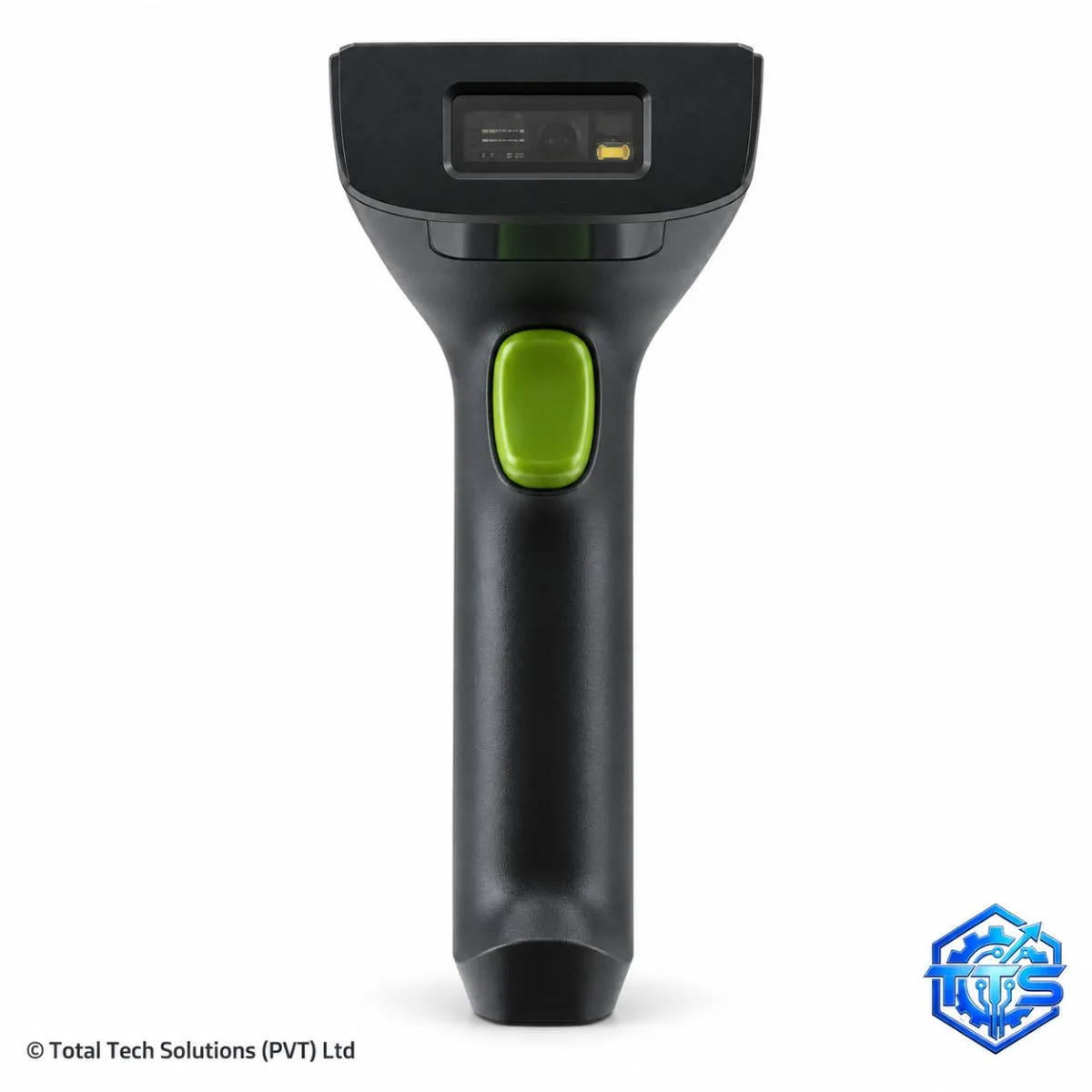

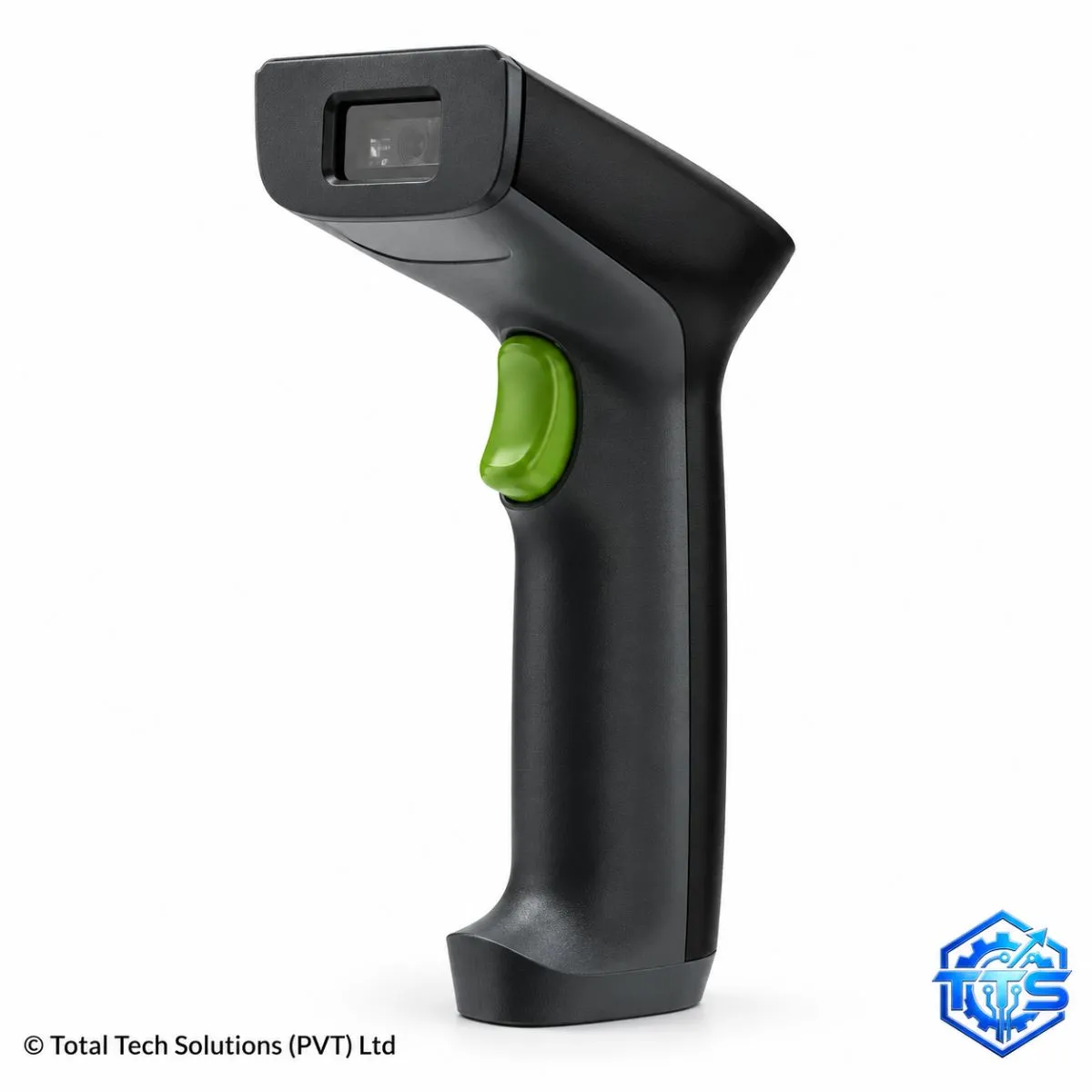

ZKTeco ZKB201S 2D Image Barcode Scanner
Barcode Scanners

ZKTeco ZKB201S 2D Image Barcode Scanner

LKR 14500.00

or 3 instalments of LKR 5413.34 with Koko (includes a 12% Koko service charge)

1
Island-wide delivery · Fee shown at checkout

Description

The ZKTeco ZKB201S is a compact handheld 2D image barcode scanner designed for retail, POS, inventory, warehouse, pharmacy, office and general commercial scanning applications. It supports fast and accurate reading of common 1D and 2D barcodes from both printed labels and electronic screens, making it suitable for product barcodes, QR codes, mobile payment codes, digital tickets and other barcode-based workflows. The scanner uses a 640 x 480 pixel image sensor with white LED illumination and a 650nm true-red aiming pattern to provide clear and comfortable target acquisition. It is designed to read standard, high-density, dirty and partially damaged barcodes when sufficient barcode information remains available. The ZKB201S supports Standard USB connectivity for simple plug-and-play installation, while RS232 is available as an optional interface. A decode LED indicator and adjustable beeper provide immediate scan confirmation. With 360-degree roll tolerance, wide pitch and skew tolerance, the scanner allows users to capture barcodes from a variety of angles without requiring precise alignment. Its lightweight 122 g construction makes it suitable for extended daily use at checkout counters, service desks, stock rooms and warehouse operations.

Key Features

  • Fast and accurate 1D and 2D barcode scanning
  • Reads QR codes from mobile phone screens
  • Reads printed product and inventory barcodes
  • Supports high-density barcodes
  • Can read dirty or partially damaged barcodes when sufficient information remains
  • 640 x 480 pixel image sensor
  • 360-degree roll tolerance
  • Wide pitch and skew tolerance
  • White LED illumination
  • 650nm red aiming indicator
  • Standard USB plug-and-play connectivity
  • Optional RS232 interface
  • Decode LED and adjustable audible beeper
  • Lightweight 122 g handheld design
ZKTeco Original2D Barcode ScannerQR Code Scanner1D Barcode ScannerUSB ScannerPOS ScannerMobile Screen ScannerZKB201SPlug and PlayBarcode Reader

Technical Specifications

BrandZKTeco
ColorBlack
ModelZKB201S
Weight122 g
Scan ModeManual Reading Mode
Dimensions167.3 x 70.5 x 81.5 mm
IndicatorsDecode LED Indicator and Adjustable Beeper
Scan Speed10 cm/s
IlluminationWhite LED
Image Sensor640 x 480 pixels
Light Source650nm True Red LED Aiming Pattern
Product Type2D Image Barcode Scanner
Scanner TypeHandheld Area Imager
Field of ViewHorizontal 41° / Vertical 31°
ESD Protection±2 kV Direct / ±4 kV Air
Host InterfaceStandard USB
Roll Tolerance0° to 360°
Skew Tolerance±55°
Pitch Tolerance±60°
Standby Current60 mA
Operating Current180 mA
Operating Voltage5 VDC
Operating Humidity5% to 95% RH, non-condensing
Optional InterfaceRS232
Storage Temperature-40°C to 70°C
Operating Temperature-20°C to 50°C
Ambient Light ImmunityUp to 10,000 Lux
Minimum Print Contrast25%

Warranty

Warranty is provided according to the seller or distributor terms applicable to the supplied unit. Keep the original invoice, serial number and packaging information for warranty claims.
