ZKTeco CM-180H Electromagnetic Door Lock with LED & Door Status Sensor
or 3 instalments of LKR 4069.34 with Koko (includes a 12% Koko service charge)
Description

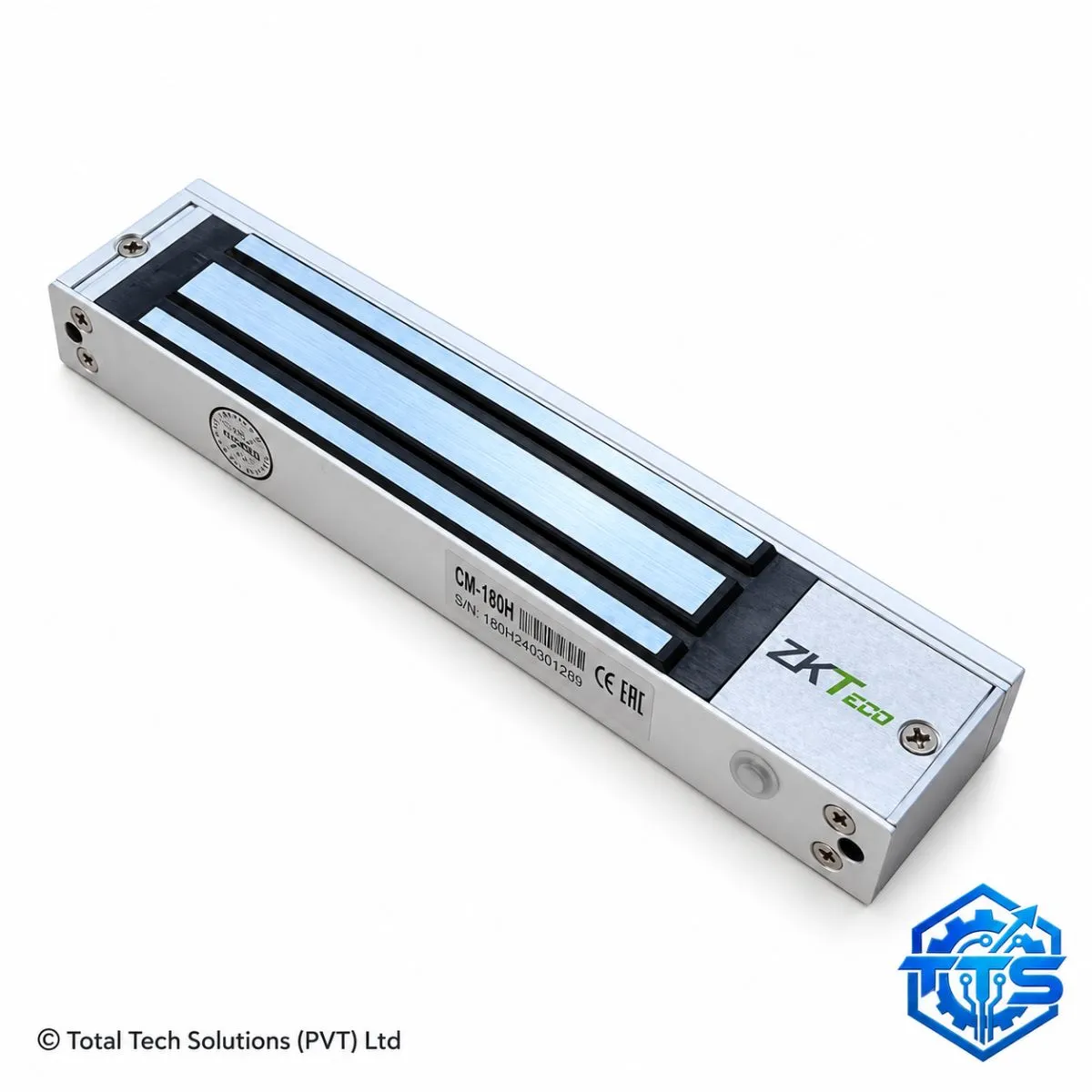

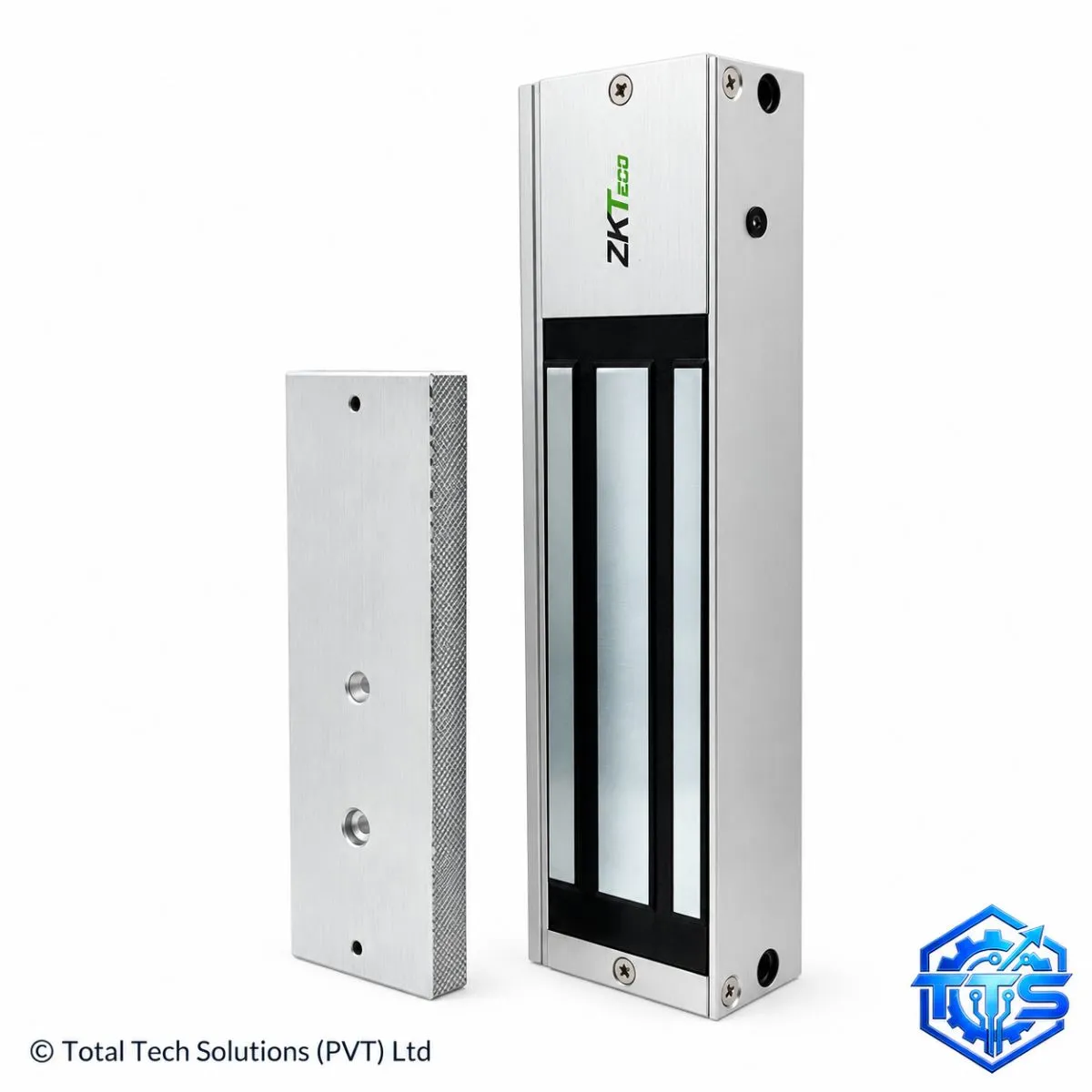

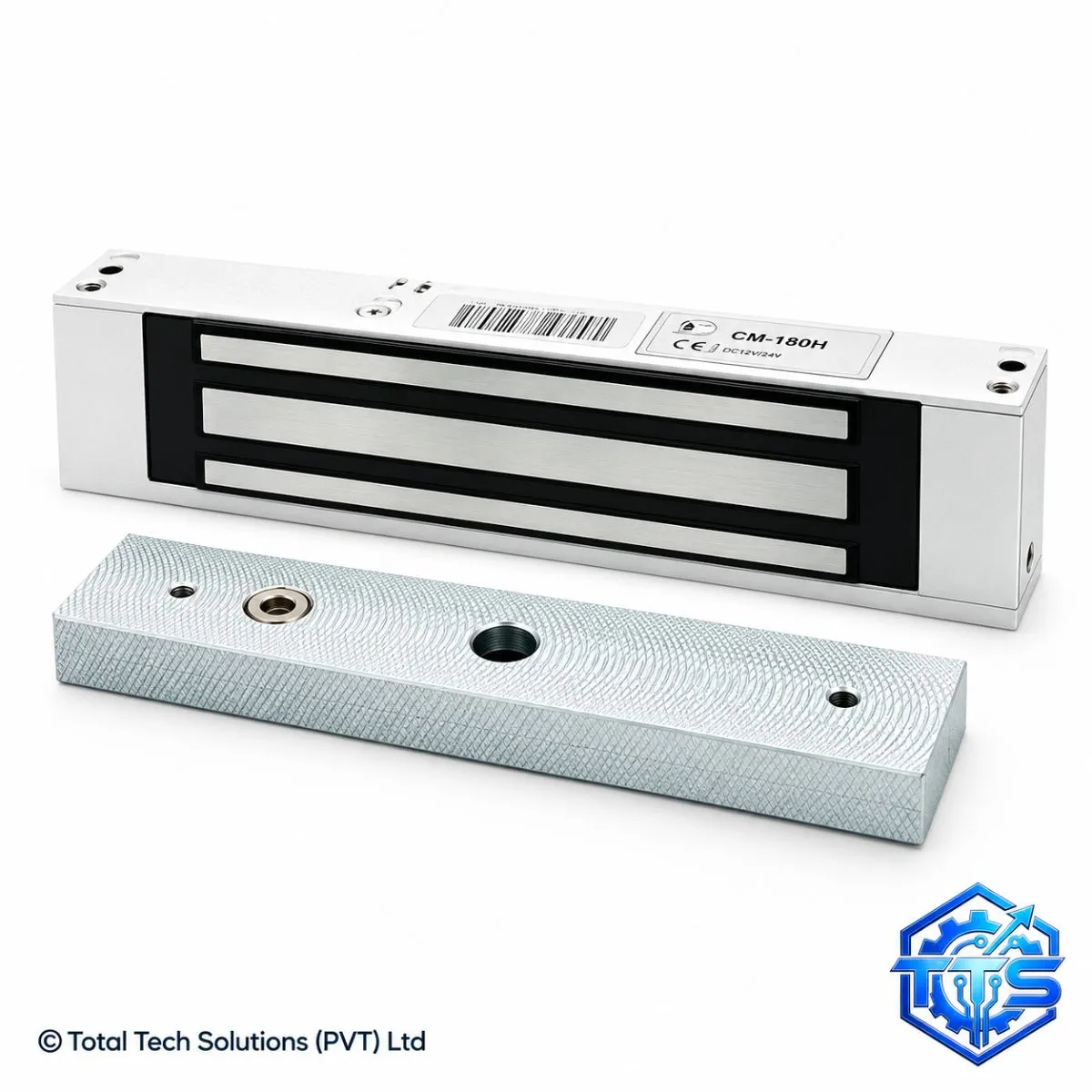

The ZKTeco CM-180H is a compact electromagnetic door lock designed for access control systems in offices, commercial buildings, retail stores, warehouses and other controlled-entry environments. It uses electromagnetic force to securely hold a compatible metal armature plate when powered, and releases the door when power is removed. The CM-180H supports 12V or 24V DC operation and includes lock-status monitoring through NO, COM and NC signal outputs, allowing integration with access controllers, biometric terminals, alarm systems and building security platforms. The model also includes LED status indication for easier visual confirmation of lock condition. Its compact lock body measures approximately 185 x 41.5 x 23 mm, while the armature plate measures approximately 130 x 33 x 11 mm. The housing uses a durable metal construction with a sand-blasted surface treatment. The CM-180H can be used with compatible ZKTeco mounting brackets such as CM-180BU, CM-180BL, CM-180BZ and CM-180BZL depending on the door type and installation requirement. It is suitable for applications where reliable fail-safe electromagnetic locking and lock-status feedback are required.
Key Features
- Electromagnetic fail-safe door locking
- Supports both 12V and 24V DC power
- Low current consumption
- NO / COM / NC lock-status output
- Integrated LED status indicator
- Built-in position / lock status sensing
- Compact surface-mounted design
- Compatible with ZKTeco access control systems
- Can integrate with biometric attendance and access terminals
- Suitable for offices, shops, warehouses and controlled-entry doors
- Compatible with multiple ZKTeco mounting bracket options
- Durable metal construction
Technical Specifications
Warranty
Warranty period depends on the supplied unit and seller terms. Warranty generally covers manufacturing defects subject to inspection and applicable terms. Warranty does not cover incorrect wiring, overvoltage, physical damage, improper installation, water damage, unauthorized modification or misuse.
