Timing / Encoder Disk for Canon PIXMA G1010 / G2010 / G3010
or 3 instalments of LKR 1120.00 with Koko (includes a 12% Koko service charge)
Description

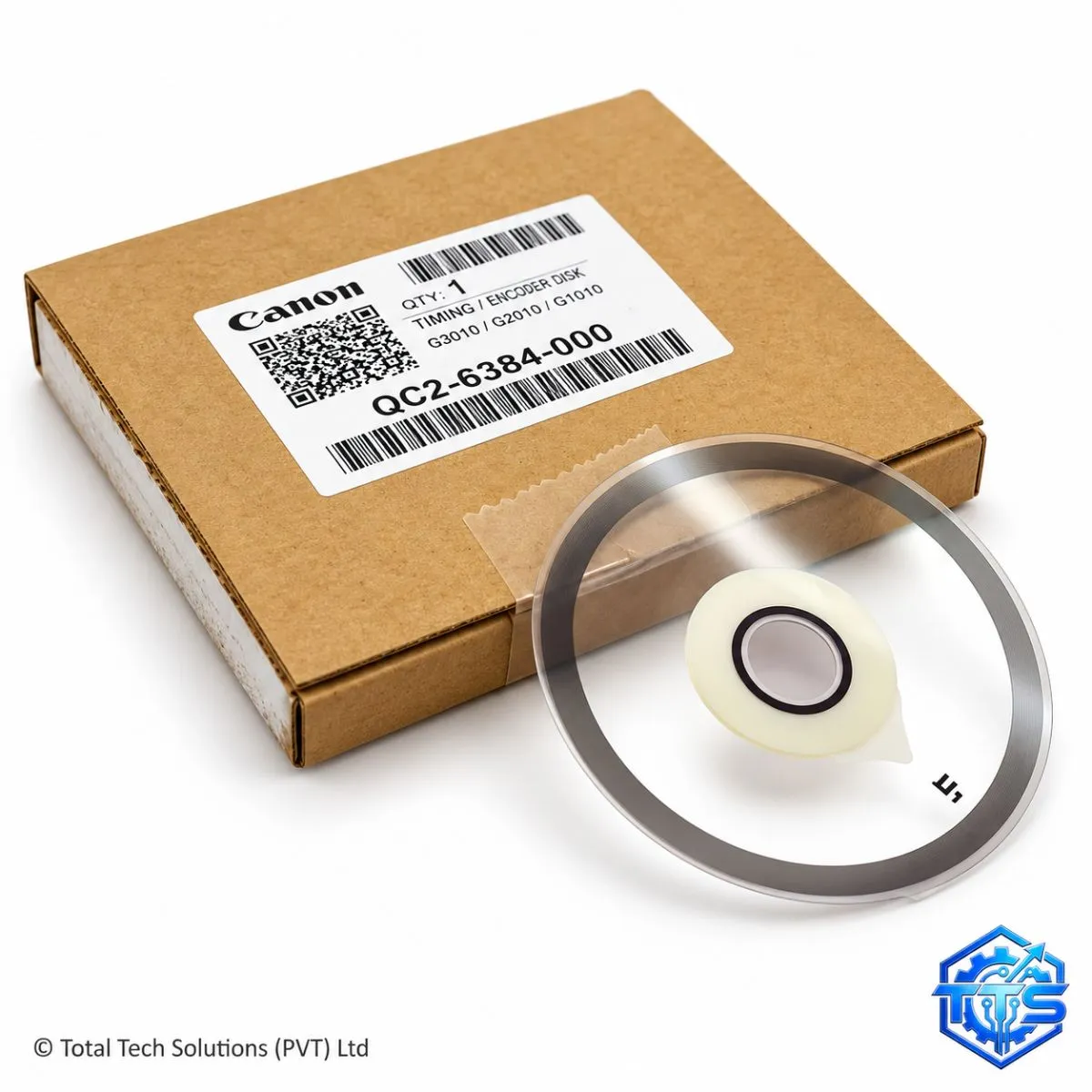

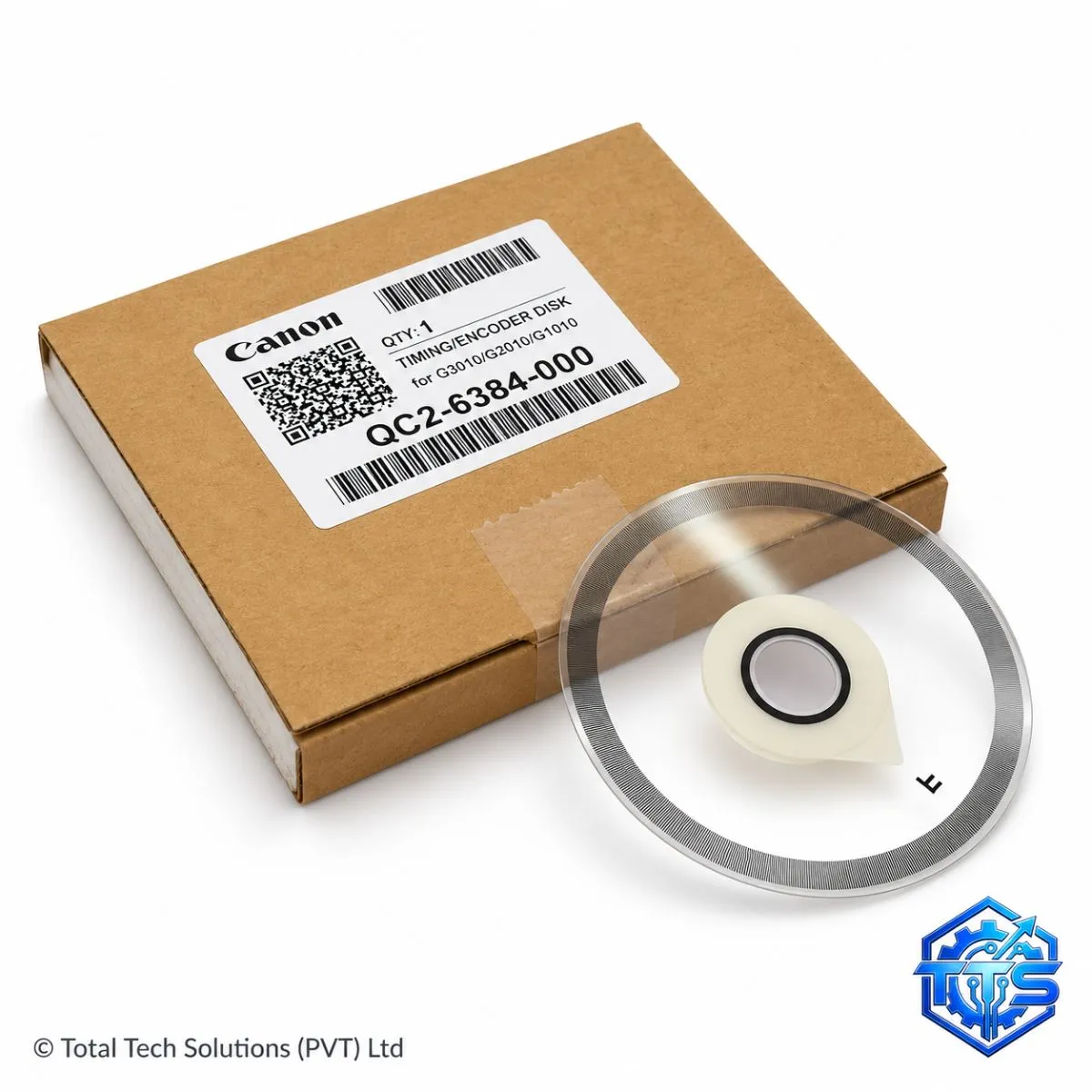

The Timing / Encoder Disk for Canon PIXMA G1010 / G2010 / G3010 is a precision replacement optical timing component designed for compatible Canon PIXMA G-Series ink tank printers. Canon identifies this component as the FILM, TIMING SLIT DISK, with the commonly documented reference QC2-6384-000. The encoder disk is a thin circular transparent film containing extremely fine timing markings. It rotates with the printer's paper-feed or line-feed mechanism while an optical encoder sensor reads the markings to determine the exact rotational position and movement of the feed system. This positional feedback allows the printer to advance paper accurately between print passes, helping maintain correct vertical image alignment, line spacing and overall print geometry. If the encoder disk becomes dirty, scratched, bent, cracked, warped, contaminated with ink or grease, or incorrectly installed, the printer may experience irregular paper advancement, misaligned printing, overlapping print bands, vertical image distortion, feed-positioning problems or sensor-related errors. The QC2-6384-000 timing disk is widely cross-listed for Canon PIXMA G1010, G2010, G3010 and several related G-Series models including G1000, G2000, G3000, G4000 and G4010. This round encoder disk should not be confused with the long transparent carriage encoder strip QC3-3935-000, which monitors the horizontal position of the moving printhead carriage. Because the timing disk contains precision optical markings, it should be handled carefully and installed without scratches, fingerprints, grease or bending. Professional installation is recommended.
Key Features
- Compatible replacement timing encoder disk
- Primary reference QC2-6384-000
- Canon description: FILM, TIMING SLIT DISK
- Compatible with Canon PIXMA G1010
- Compatible with Canon PIXMA G2010
- Compatible with Canon PIXMA G3010
- Precision optical timing markings
- Monitors paper-feed mechanism rotation
- Helps maintain accurate vertical paper positioning
- Helps maintain correct line spacing
- Supports consistent paper advancement during printing
- Brand-new replacement component
- Professional installation recommended
