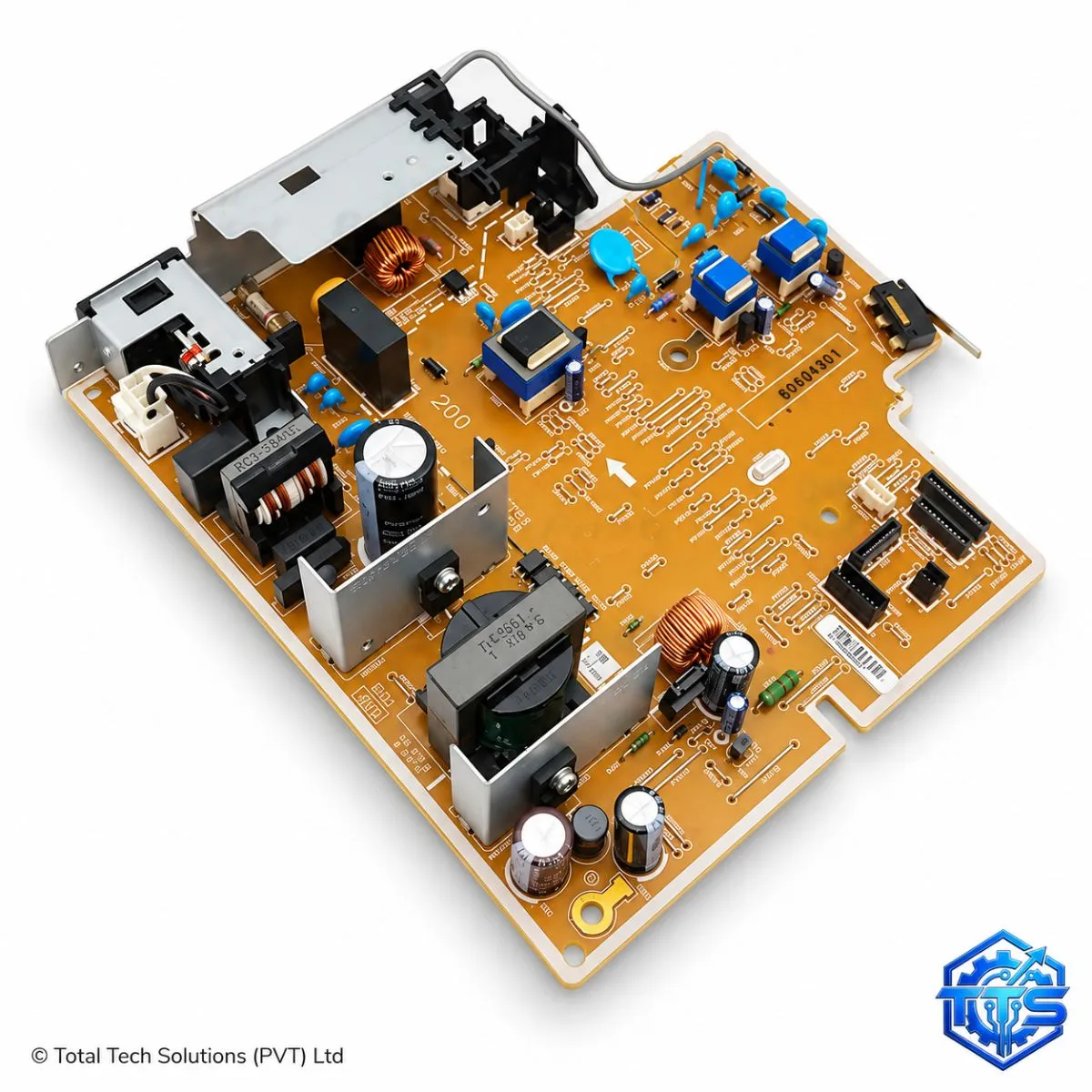

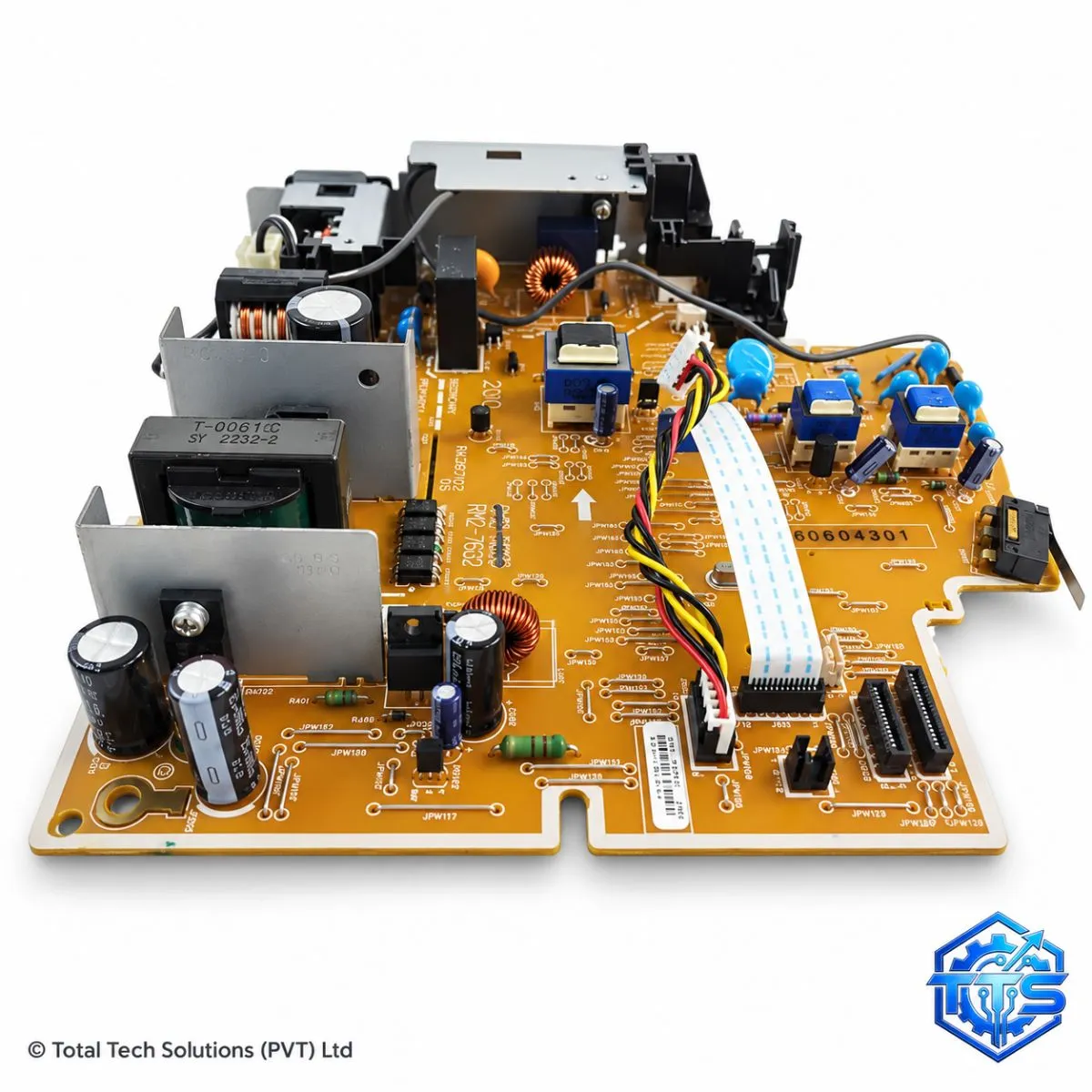

Power Board for HP LaserJet Pro MFP M225dn
Description
The Power Board for HP LaserJet Pro MFP M225dn is a replacement Engine Control PCB designed for compatible HP LaserJet Pro MFP M225 and M226-series monochrome multifunction printers. HP service documentation identifies this component as the Engine Control PCB Assembly. It coordinates important printer-engine functions including paper-feed sequencing, motor operation, sensor monitoring, fuser control and communication with the formatter board. The 220-240V version is identified by HP part number RM2-7633-000, while RM2-7632-000 is the corresponding 110-127V version. A further RM2-8080-000 220-240V revision is documented for selected CH/IN regional configurations. Because these boards are voltage-specific and are not universal dual-voltage components, the exact part number and printer voltage must be checked before installation. A faulty engine-control or power-control PCB may cause symptoms such as failure to initialize, no motor operation, paper-feed control problems, fuser-related errors, intermittent shutdown, abnormal engine behaviour or a printer that powers on but cannot complete its startup sequence. Similar symptoms can also result from the fuser, formatter board, motor PCB, sensors, wiring or other electrical components, so professional diagnosis is recommended before replacement. The HP LaserJet Pro MFP M225dn itself is a multifunction monochrome laser printer offering Print, Copy, Scan and Fax functions, automatic duplex printing, Ethernet networking and a 35-sheet Automatic Document Feeder. For reliable repair, customers should compare the RM2 part number printed on the original PCB with this replacement before ordering.
Key Features
- Replacement Engine Control PCB for HP LaserJet Pro MFP M225dn
- Primary 220-240V reference RM2-7633-000
- Also referenced as RM2-7633-000CN
- Designed for compatible M225/M226-series printers
- Controls printer-engine operation
- Controls or interfaces with paper-feed mechanisms
- Interfaces with printer motors and sensors
- Supports fuser-control functions
- Communicates with the formatter board
- Suitable for printer repair and refurbishment
- Voltage-specific electronic replacement component
- Professional technician installation strongly recommended
