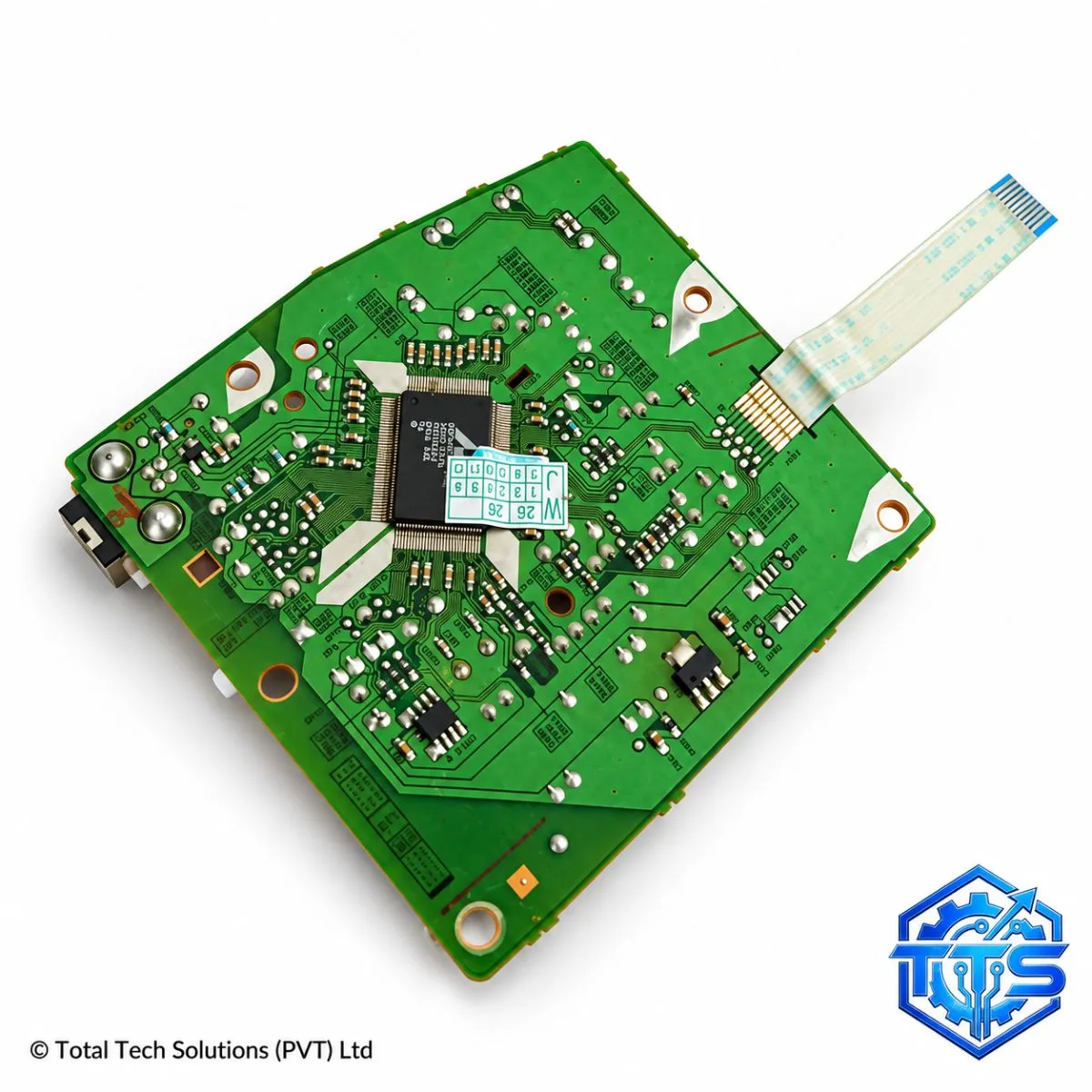

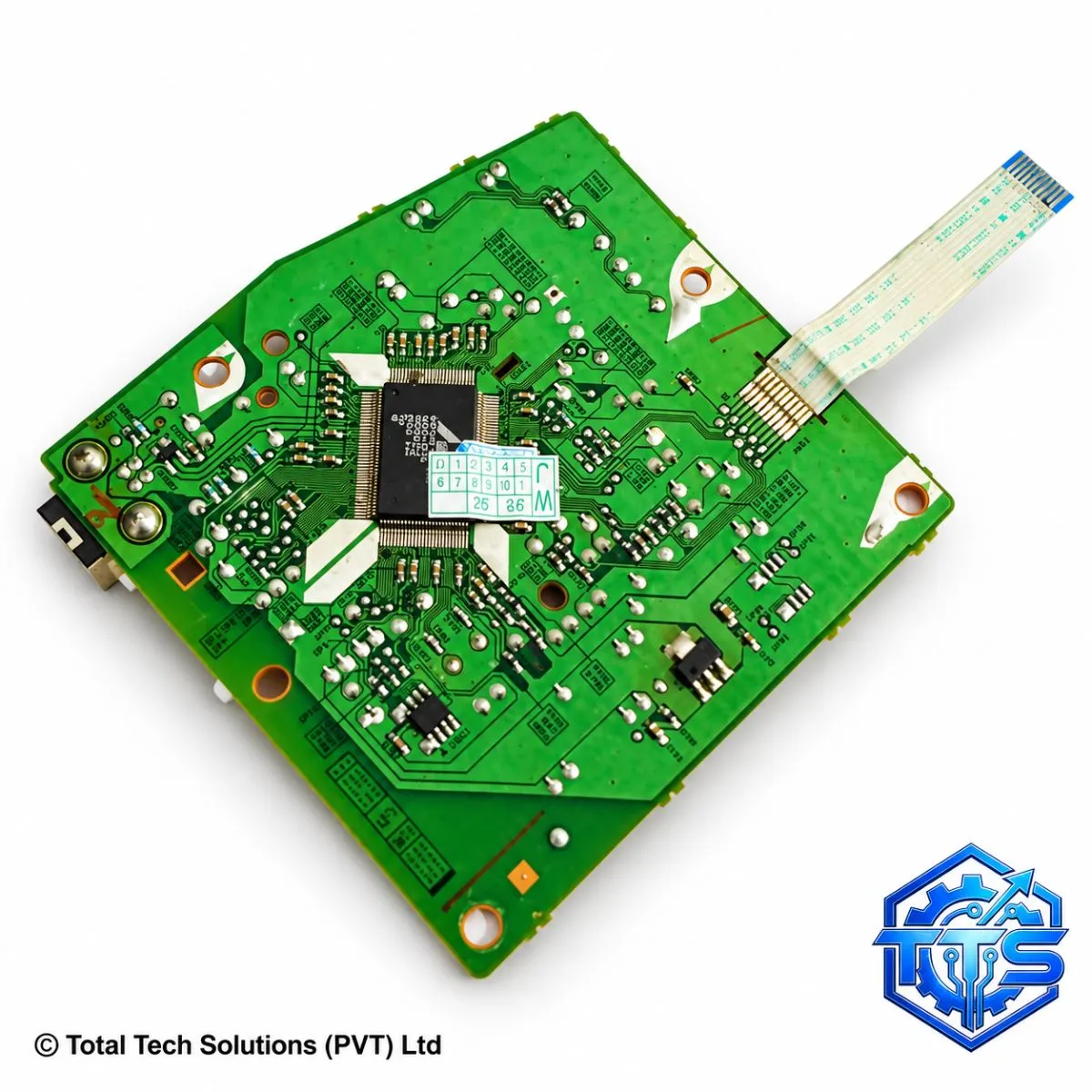

Formatter Board for HP LaserJet Pro P1105 Series
Description
The Formatter Board for HP LaserJet Pro P1105 Series is the main logic and data-processing board responsible for controlling communication between the printer and connected computer, processing incoming print jobs, managing printer firmware functions and coordinating communication with the printer engine. The formatter board is often referred to as the logic board, main board, motherboard, main PCB or formatter PCA. A faulty formatter board may cause symptoms such as the printer not being detected through USB, failure to initialize correctly, persistent communication errors, print jobs remaining in the queue without printing, abnormal LED behaviour, firmware-related startup problems or a completely non-responsive USB interface. Formatter boards in the HP LaserJet P110x family are commonly referenced under the RM1-7600 family, with related service references including RM1-7600-010CN, RM1-7600-020CN and CE668-60001 depending on printer model, production revision and regional configuration. Because formatter boards can look physically similar while containing different firmware, USB configuration or hardware revisions, customers should always compare the exact part number printed on their original board before ordering. This replacement component is intended for printer repair and refurbishment by experienced technicians. Proper electrostatic-discharge precautions should be used during installation.
Key Features
- Replacement formatter board for HP LaserJet Pro P1105-series repair
- RM1-7600 formatter-board family
- Common CE668-60001 cross-reference
- Processes incoming print jobs
- Controls printer logic and firmware functions
- Manages computer-to-printer communication
- Controls USB communication on compatible printer versions
- Interfaces with the printer engine-control electronics
- Suitable for repairing communication and initialization faults
- Suitable for printer refurbishment
- Internal electronic replacement component
- Professional installation recommended
