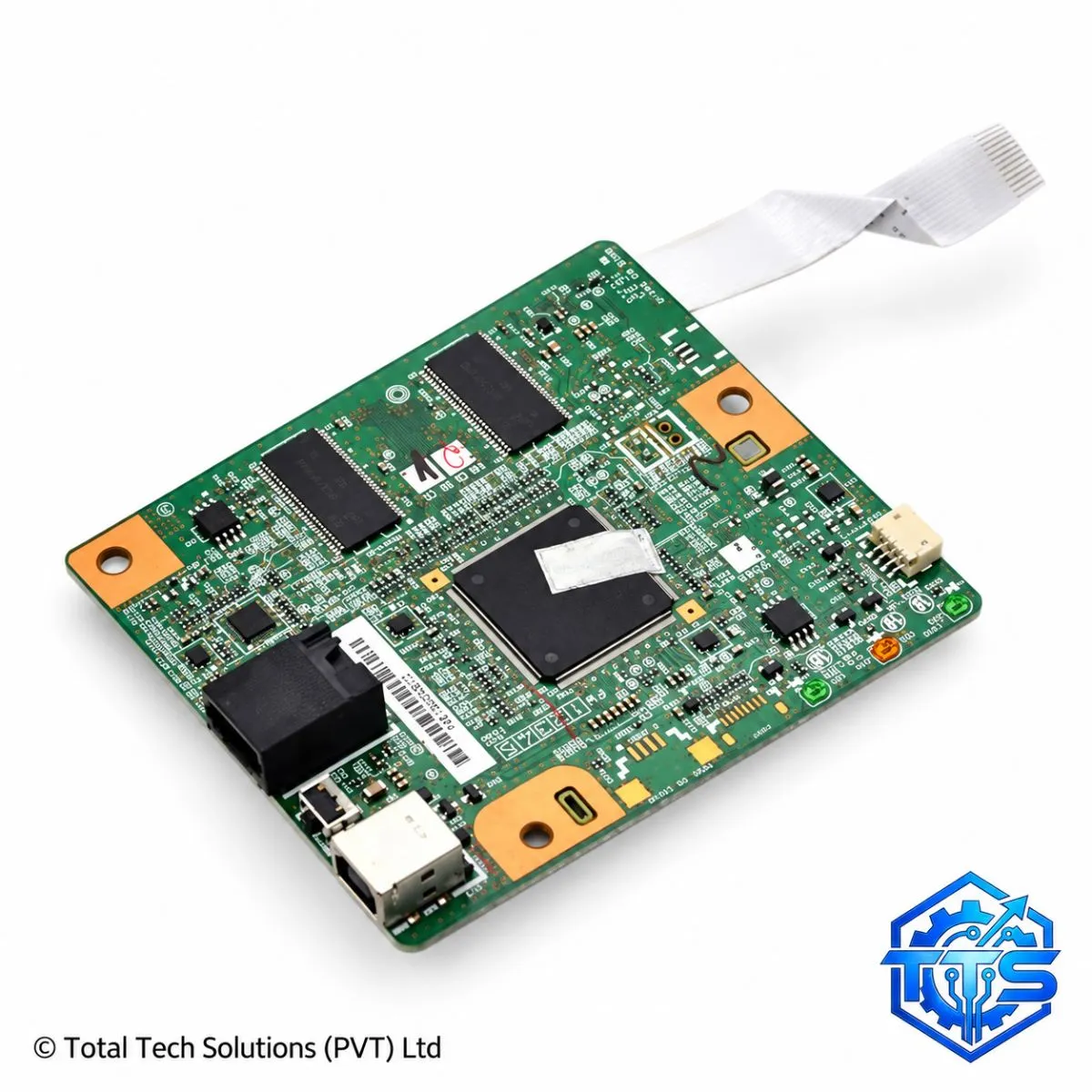

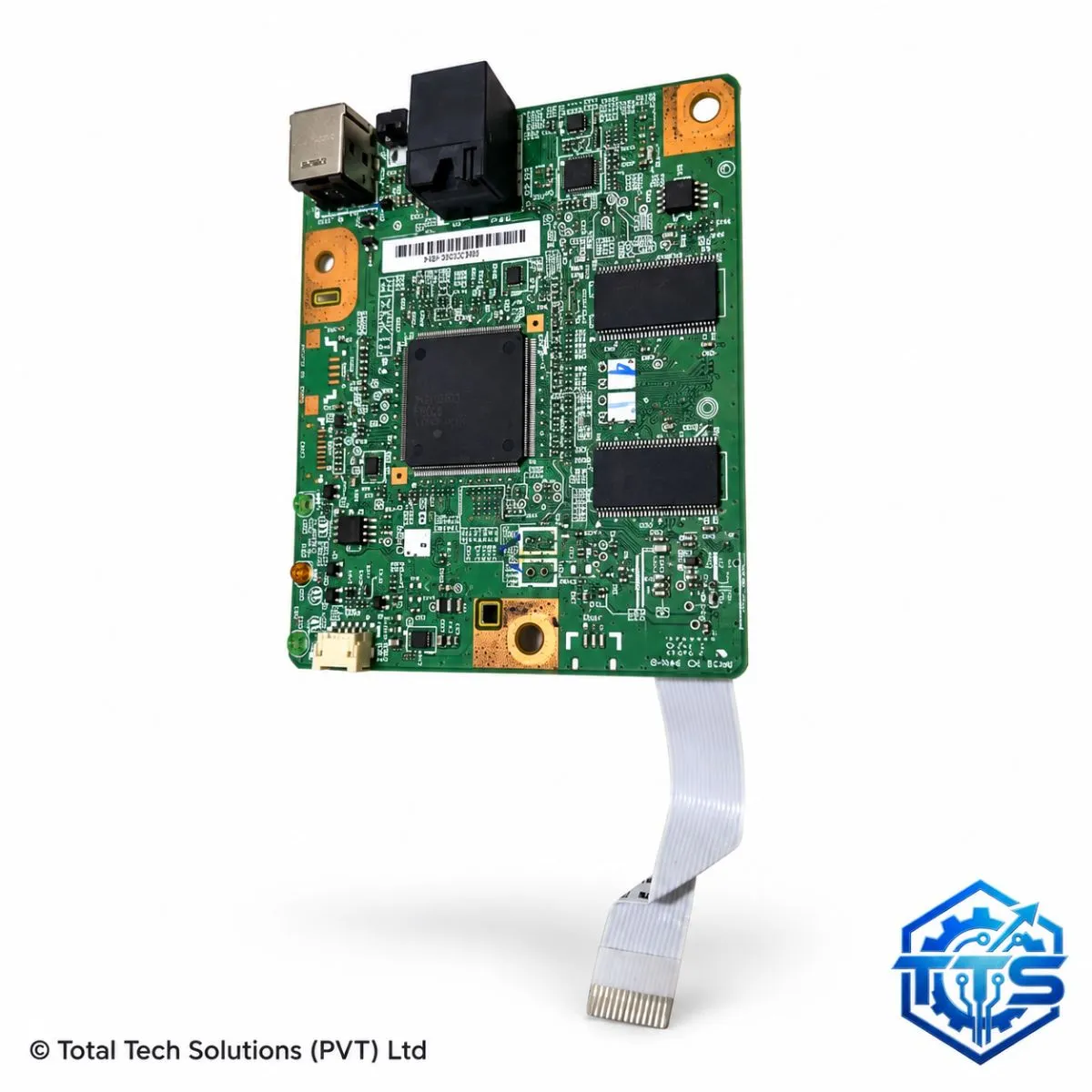

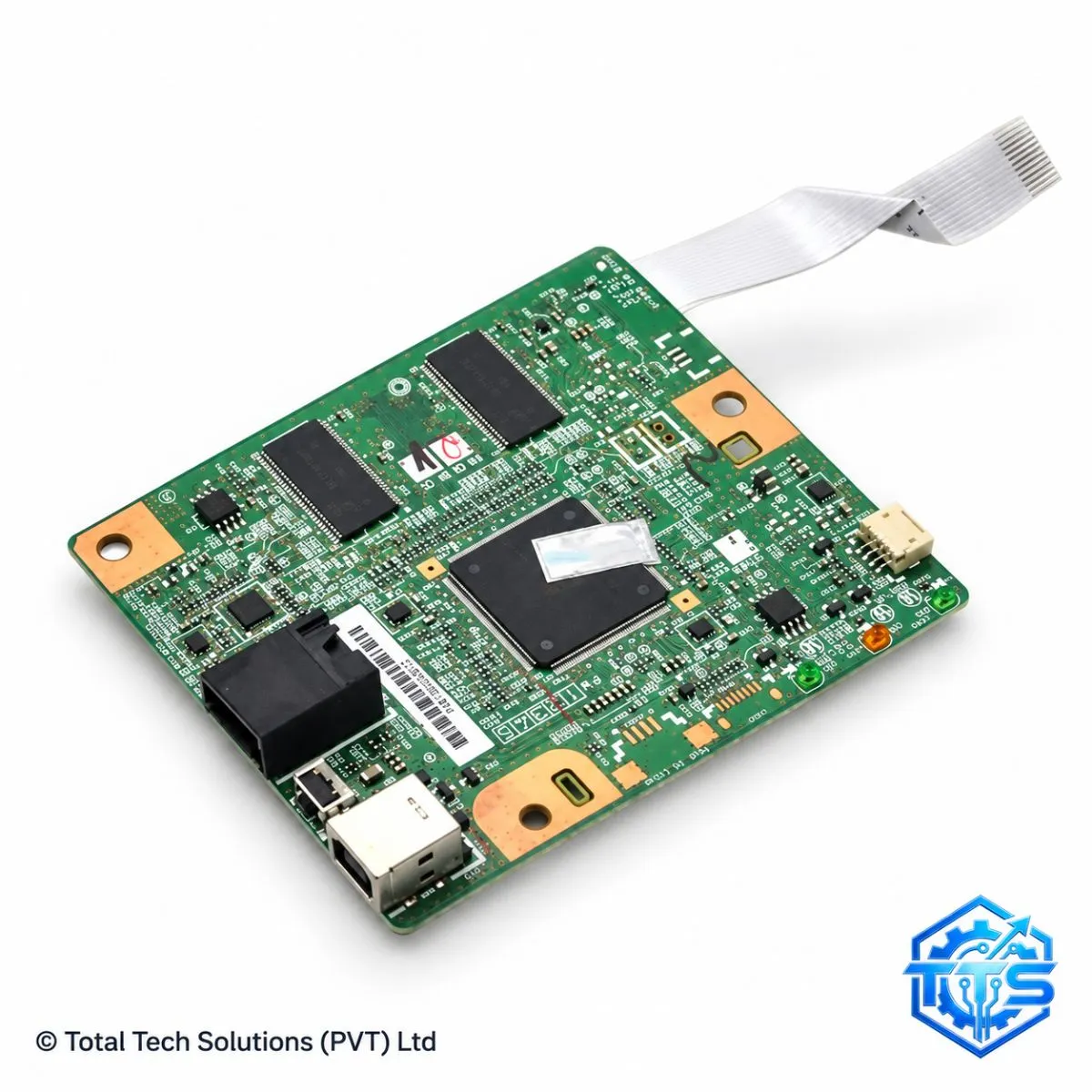

Formatter Board for Canon imageCLASS LBP6230dn Printer
Description
The Formatter Board for Canon imageCLASS LBP6230dn is a replacement main controller board designed for compatible Canon LBP6230dn monochrome laser printers. The formatter board, also commonly referred to as the main controller PCB, logic board or controller board, is one of the printer's core electronic components. It is responsible for processing print data, managing communication with connected computers and networks, controlling printer-language functions and coordinating system-level communication between the printer's electronic assemblies. A defective formatter board can cause problems such as the printer freezing during startup, failing to become ready, USB or Ethernet communication failures, inability to process print jobs, repeated system errors, abnormal control behaviour or intermittent printer operation. Replacing a confirmed faulty formatter board can restore normal data processing and communication functions without replacing the complete printer. The Canon imageCLASS LBP6230dn is a monochrome laser printer with UFR II LT host-based printing, 64 MB of print memory, automatic duplex printing, USB 2.0 and 10/100Base-T Ethernet connectivity. Because formatter boards may contain firmware, machine configuration and revision-specific components, compatibility should always be confirmed using the existing board number, connector layout and printer model before installation. Professional diagnosis and installation are strongly recommended.
Key Features
- Replacement formatter board for Canon imageCLASS LBP6230dn
- Acts as the printer's primary data-processing and logic controller
- Processes incoming print jobs
- Manages USB and Ethernet communication functions
- Supports Canon UFR II LT print processing
- Coordinates communication with internal printer control systems
- Suitable for repairing confirmed controller-board faults
- Can help restore printers affected by startup or communication failures
- Cost-effective alternative to replacing the complete printer when the formatter board is faulty
- Suitable for professional printer repair and refurbishment
- Professional installation recommended
Technical Specifications
Compatible With
Warranty
Warranty applies against supplied-part or manufacturing defects subject to inspection. Warranty does not cover incorrect installation, electrical surge, unstable power, short circuits, liquid damage, corrosion, incorrect firmware, physical damage, unauthorized modification or damage caused by other printer components. Contact Total Tech Solutions with the item code and proof of purchase for warranty assistance.
