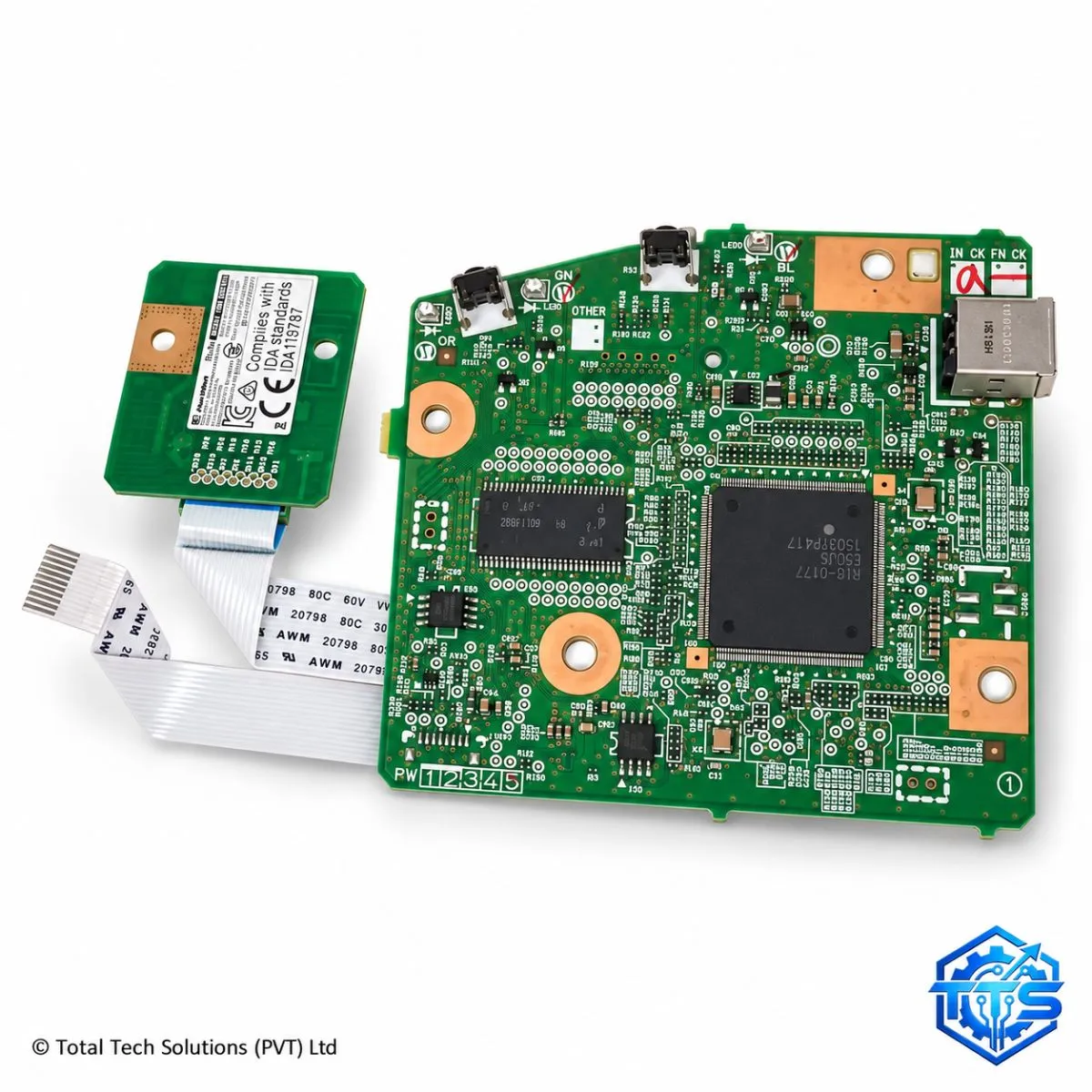

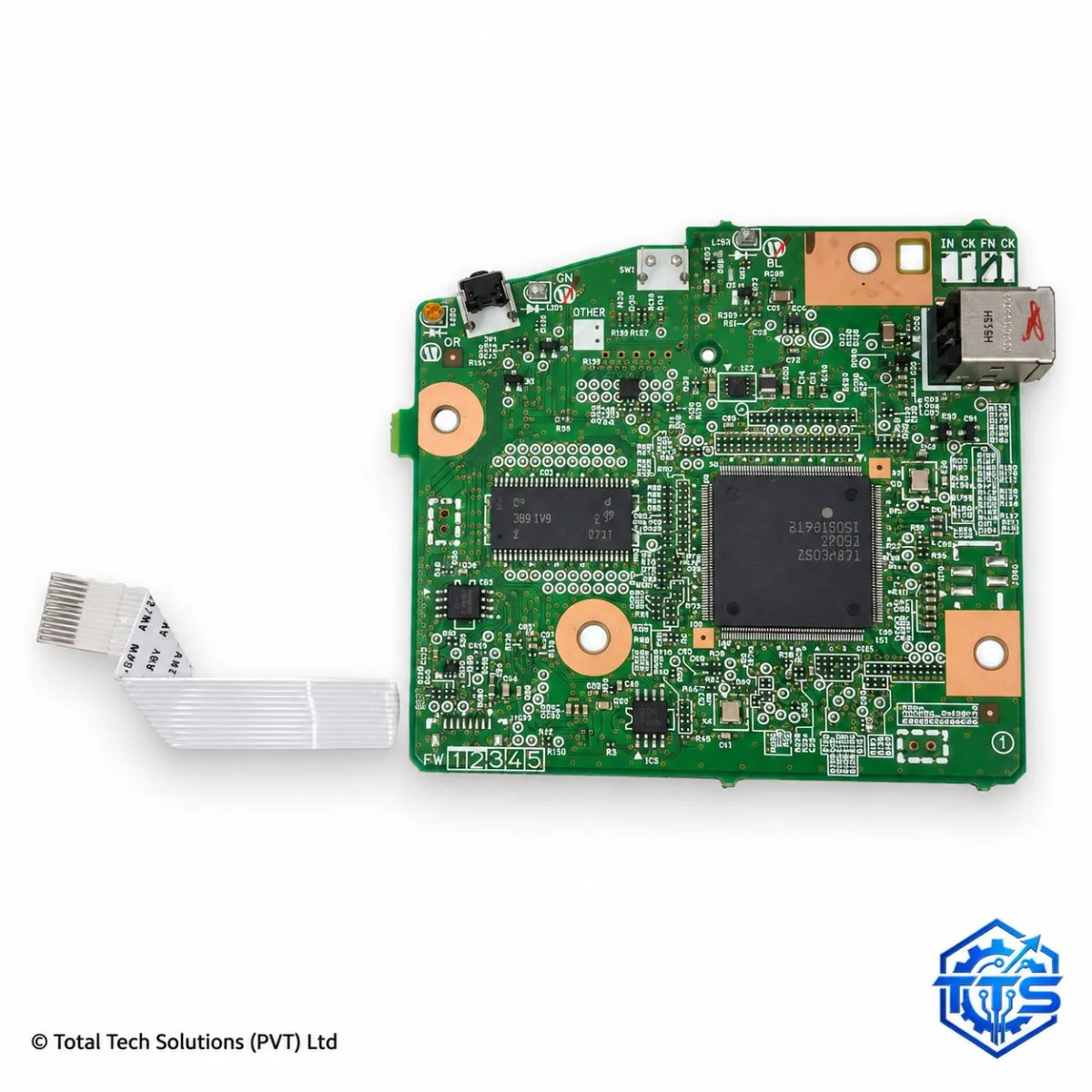

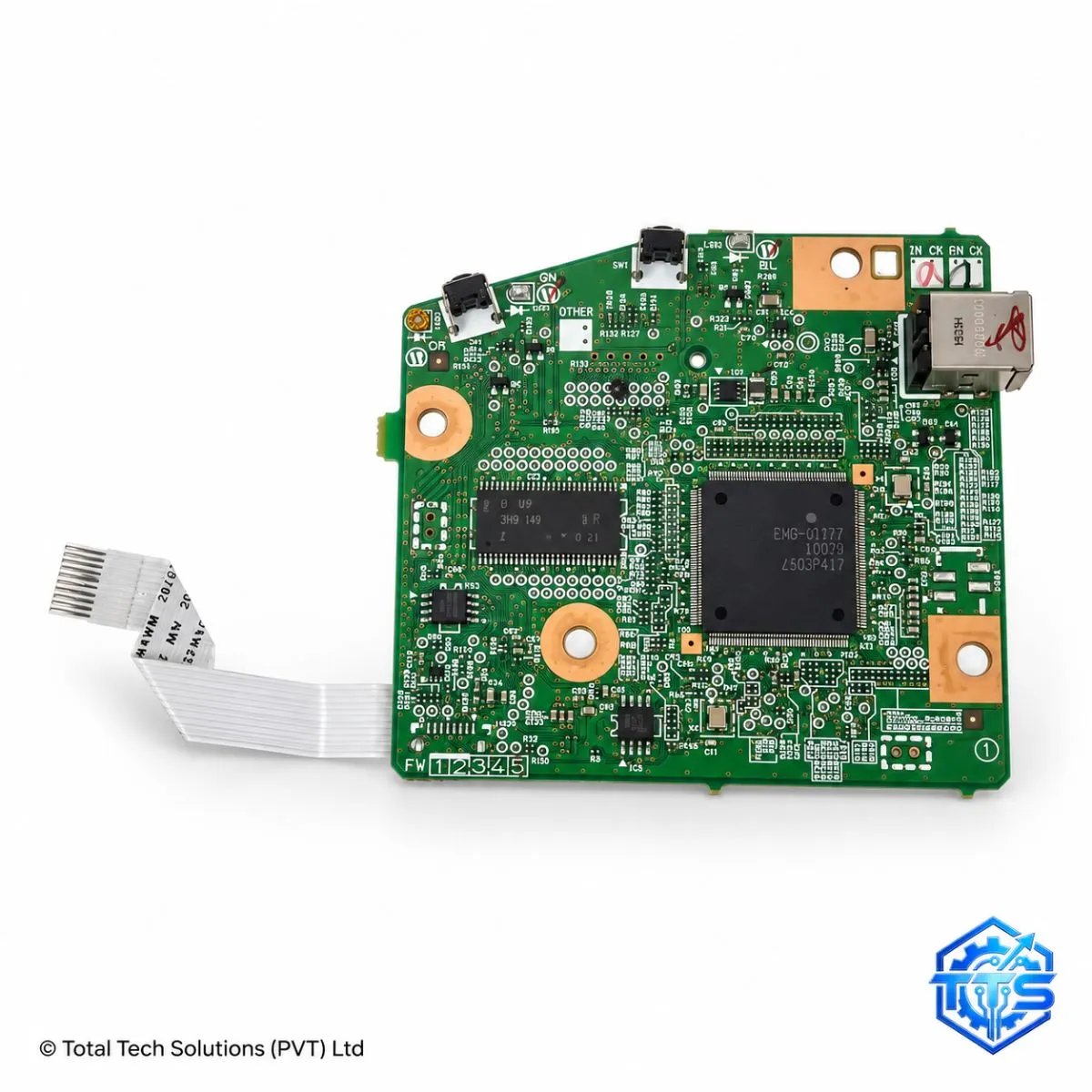

Formatter Board for Canon LBP 6030 Printer Series
Description
The Formatter Board for Canon LBP 6030 Printer Series is a replacement main controller PCB designed for compatible Canon monochrome laser printers in the LBP 6030 family. The formatter board, also commonly referred to as the main controller board, logic board or main PCB, is responsible for processing print data, managing printer-language functions, controlling USB or network communication depending on the exact printer variant, and coordinating system-level communication with the printer's internal control electronics. A faulty formatter board can cause symptoms such as the printer freezing during startup, failing to become ready, USB communication failure, wireless or network communication problems on supported models, print jobs not processing, repeated controller errors or intermittent operation. Replacing a confirmed faulty formatter board can restore normal data-processing and communication functions without replacing the complete printer. The Canon LBP6030 family is a compact monochrome laser platform using UFR II LT print processing, 32 MB print memory, a 150-sheet paper input cassette and up to 600 x 600 dpi native print resolution with enhanced output quality up to 2400 x 600 dpi. Because Canon uses different main controller PCB assemblies across regional and connectivity variants, the exact board number, connector layout and printer model should always be confirmed before purchase. Professional diagnosis and installation are strongly recommended.
Key Features
- Replacement formatter board for compatible Canon LBP 6030 series printers
- Acts as the printer's main data-processing and logic controller
- Processes incoming print jobs
- Supports Canon UFR II LT print processing
- Manages USB communication on supported LBP6030 models
- Can manage wireless/network functions on compatible wireless-board variants
- Coordinates communication with internal printer control systems
- Suitable for repairing confirmed controller-board faults
- Can help restore printers affected by startup or communication failures
- Cost-effective alternative to replacing the complete printer when the formatter board is faulty
- Suitable for printer repair and refurbishment
- Professional installation recommended
Technical Specifications
Compatible With
Warranty
Warranty applies against supplied-part or manufacturing defects subject to inspection. Warranty does not cover incorrect installation, electrical surge, unstable power, short circuits, liquid damage, corrosion, incorrect firmware, physical damage, unauthorized modification or faults caused by other printer components. Contact Total Tech Solutions with the item code and proof of purchase for warranty assistance.
