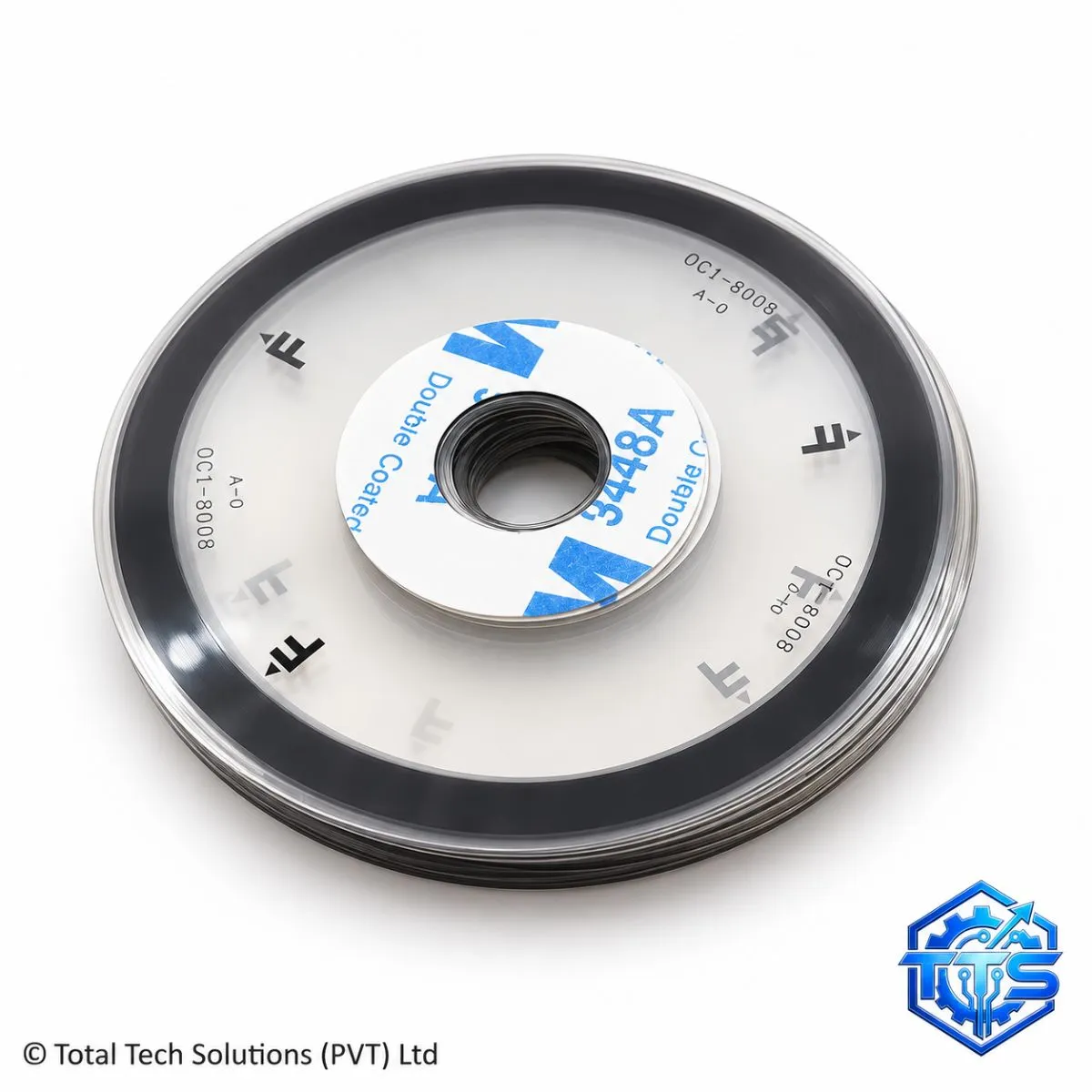

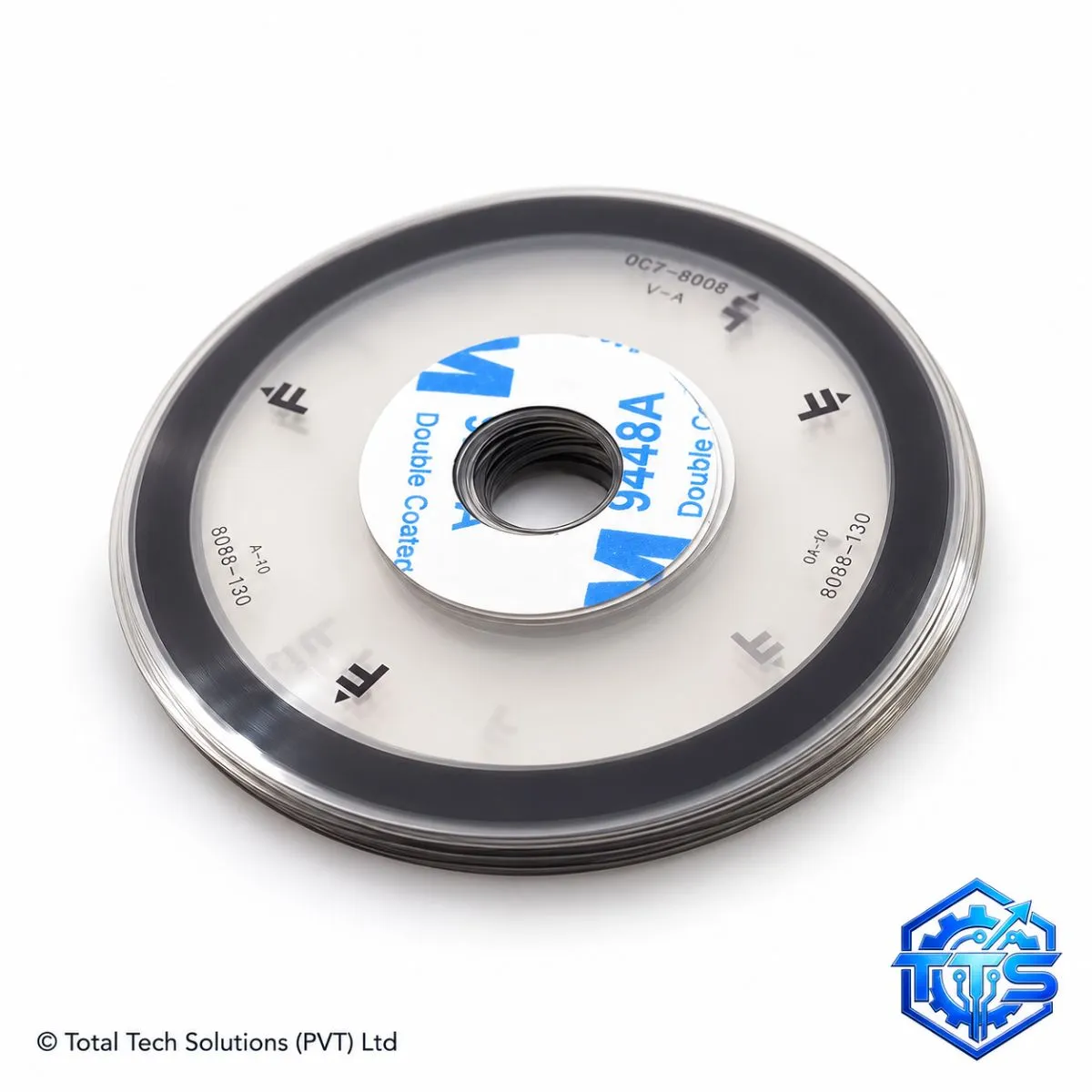

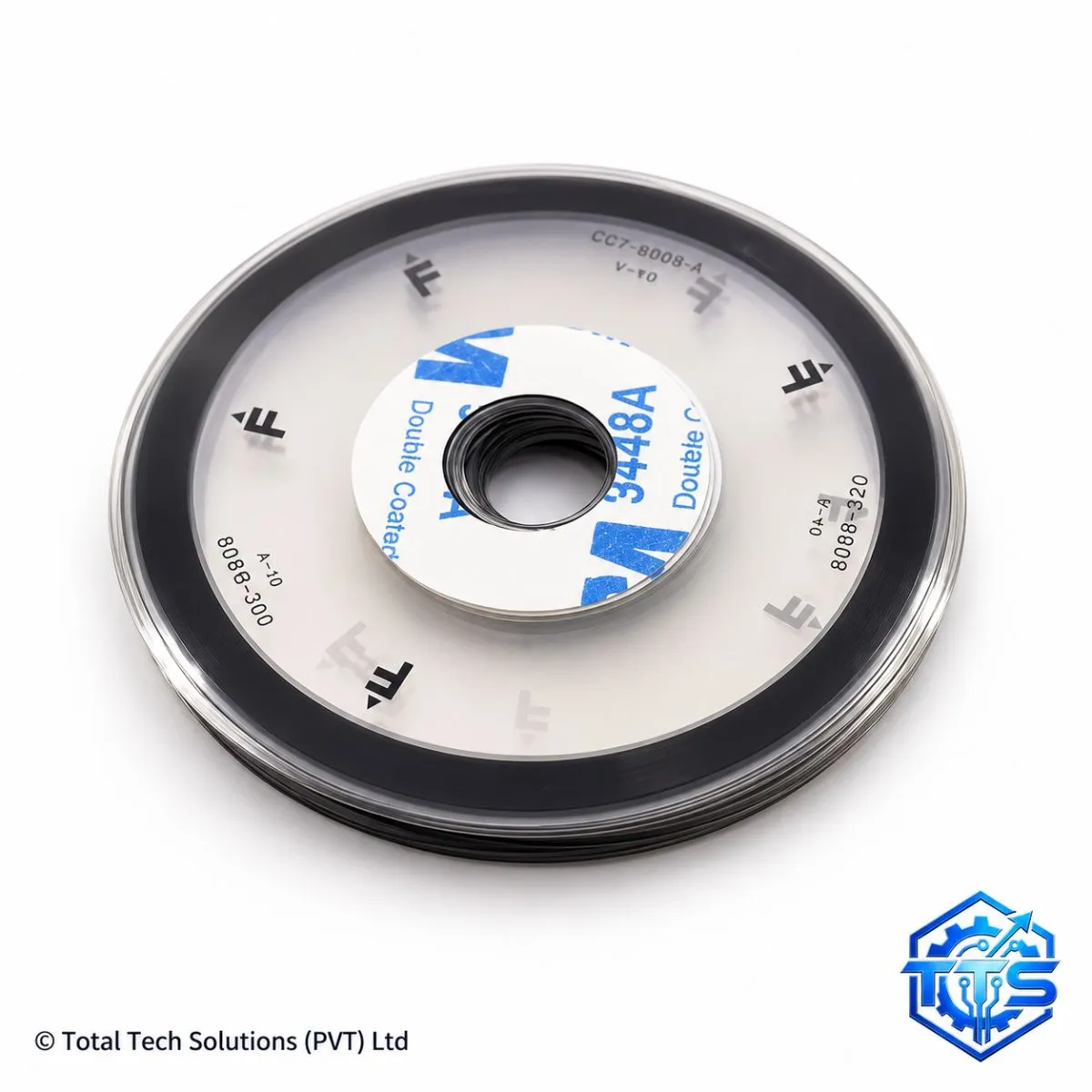

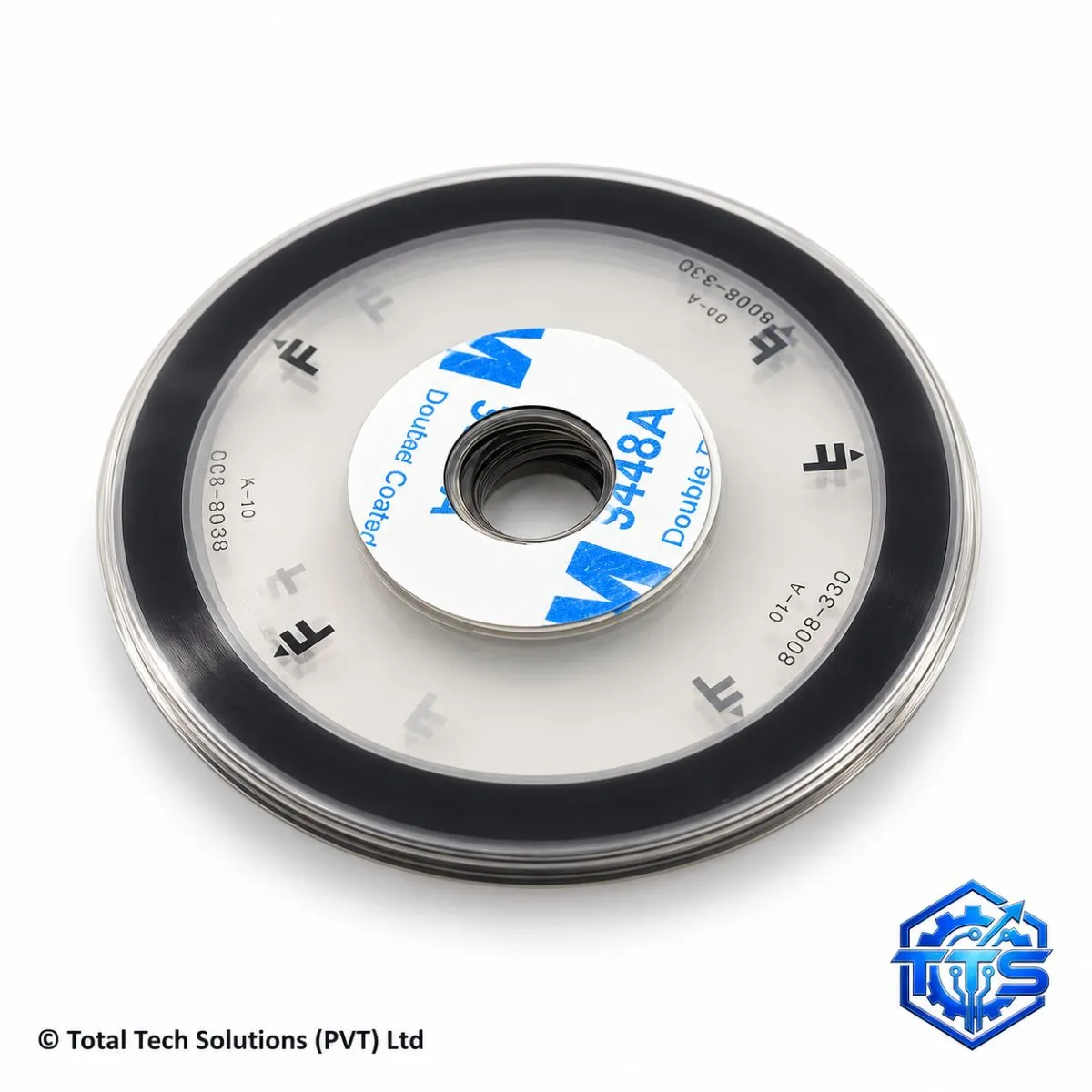

Disk Encoder Wheel for Canon PIXMA E410 / E470 Series
or 3 instalments of LKR 933.34 with Koko (includes a 12% Koko service charge)
Description
The Disk Encoder Wheel for Canon PIXMA E410 / E470 Series is a precision replacement paper-feed positioning component designed for compatible Canon PIXMA inkjet printers. Canon identifies this type of component as a FILM, TIMING SLIT DISK FEED, with the widely referenced part number QC4-8068-000. The encoder disk is a thin circular precision-marked film mounted on the printer's paper-feed or line-feed mechanism. An optical timing sensor reads the extremely fine markings around the disk as the paper-feed mechanism rotates. These signals allow the printer electronics to calculate the rotational position, direction and movement of the paper-feed system so that paper advances by the correct amount between printed lines. Accurate paper advancement is essential for maintaining correct vertical image placement, line spacing and alignment. If the encoder disk becomes dirty, scratched, cracked, bent, incorrectly installed or contaminated with ink, grease or paper dust, the optical sensor may receive incorrect positioning information. This can result in uneven paper advancement, vertically distorted images, overlapping or separated print lines, incorrect paper movement, abnormal feeding or related printer errors. QC4-8068 is widely cross-listed for Canon PIXMA E410 and E470-series printers as well as selected related Canon models using the same feed-encoder design. This disk is different from the long transparent carriage encoder strip: the encoder disk monitors rotational paper-feed movement, while the encoder strip monitors the horizontal position of the printhead carriage. Because the encoder disk is a delicate optical component with very fine timing markings, careful handling and technician installation are recommended.
Key Features
- Compatible replacement encoder disk for Canon PIXMA E410 / E470 Series
- Common Canon reference QC4-8068-000
- Canon component description: FILM, TIMING SLIT DISK FEED
- Precision optical timing markings
- Monitors paper-feed mechanism rotation
- Helps maintain accurate vertical paper positioning
- Helps maintain consistent line spacing
- Supports precise paper advancement during printing
- Suitable for printer repair and refurbishment
- Brand-new replacement spare part
- Professional installation recommended
